Mini-dépanneuse à moteur électrique BSC à vendre

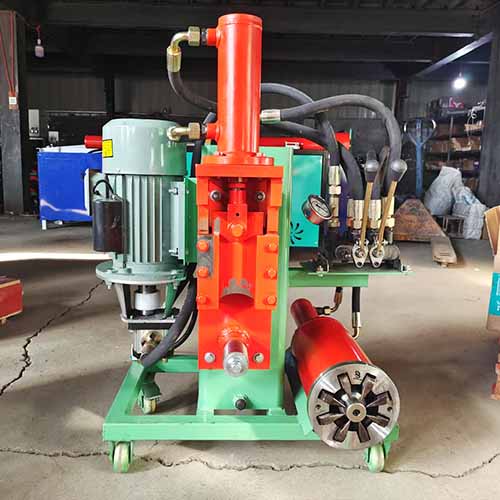

Mini-machine de démolition de moteur électrique BSC du granulateur BSGH

mini bsc electric motor wrecker machine blue color

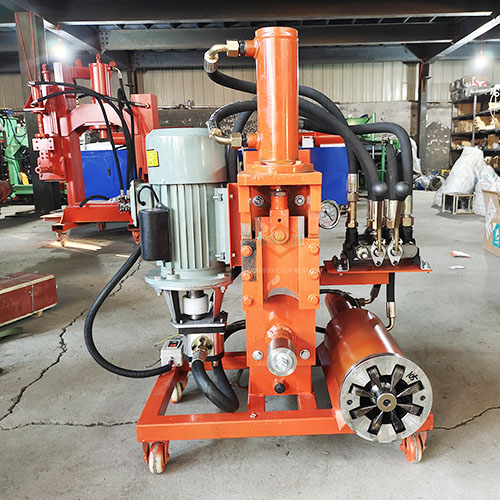

mini bsc electric motor wrecker machine green color

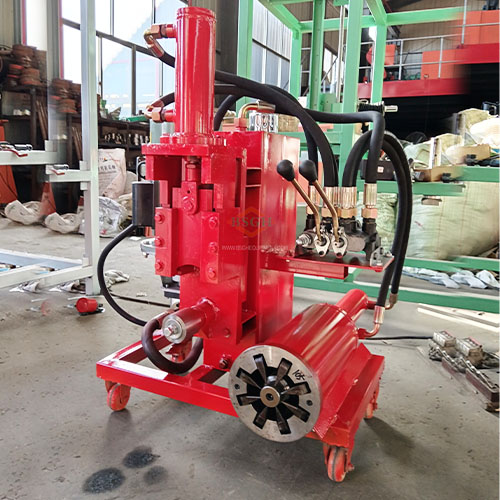

mini bsc electric motor wrecker machine red color

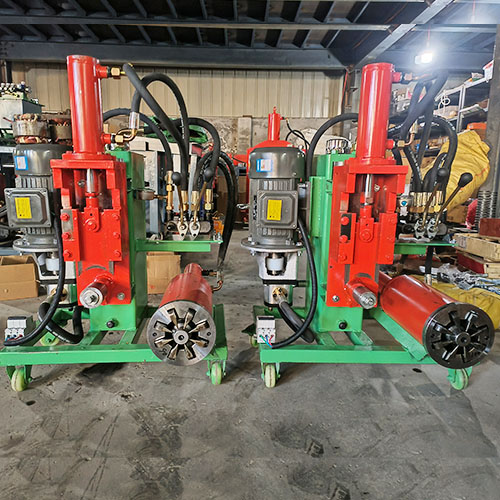

MINI BSC electric motor wrecker machine for sale

Catégories Machine de recyclage de compresseur, Machine de recyclage de moteur normale

 5/5

Mini-dépanneuse à moteur électrique BSC à vendre

Mini BSC electric motor wrecker is very popular for small scrapyards or personal use to recycle scrap motors all over the world. This machine is mainly for small motor stators whose diameter must be below 120 mm.

The Mini BSC is designed specifically for disassembling small electric motors, especially from household appliances. It’s a perfect solution for small-volume recyclers, families, or scrapyards looking for an efficient way to extract copper.
High quality & Lower price: This machine is very cheap only USD2000, a type of model specializing for lower budget customers.
Full functions: Don’t be fooled by its compact size – the Mini BSC electric motor wrecker machine can cut and pull copper windings from motor stators quickly and easily. It combines cutting and stripping functions in one unit, improving efficiency and saving labor.
Easy to move: With a footprint of just 660 × 730 × 950 mm and built-in wheels, the Mini BSC is extremely portable. You can move it around your workspace effortlessly — no forklift or special equipment needed.

Description de la vidéo

Time: In June 2024
Country: A customer from Italy reached out to us after browsing our website.
Background: He owned a large number of small electric motors but was unsure of the most cost-effective way to recycle them. After understanding his needs and concerns, we recommended the Mini BSC, a compact and affordable copper recycling machine.

With a cost of only USD 2,000, the Mini BSC offered an ideal solution for small-scale recycling. The machine is designed to be user-friendly and efficient, requiring just one person to operate it. This makes it especially suitable for household or small workshop use.

Shortly after receiving the product, the customer sent us a video showing the machine in action. We were thrilled to receive his positive feedback—he found the Mini BSC easy to use et highly effective in extracting copper from the motors. His satisfaction reaffirms our commitment to providing practical, affordable solutions for customers around the world.

Mini BSC electric motor wrecker for sale

Mini BSC electric motor recycling machine is professional in dealing with the scrap motors whose power should be below 1.5kw, this machine consists of three main parts: hydraulic system, cutting and pulling parts.

Cutting parts:To cut one end of the motor stator copper windings;
Pulling parts: To pull copper windings with claws;
Hydraulic system: Mainly to control the cutting and pulling parts by operating hydraulic rods.

Modèle	Mini BSC
Puissance du moteur	3 kW
Tension	380V/220V
Poids	150kg
Taille de la machine	660730950mm
Packing Size	830830900mm
Application	Small motors below 1.5KW

Mini BSC electric motor wrecker machine is always assembled with compressor case cutting machine together, because of compressor stators are small, mini BSC is the best economic choice, you can also choose other bigger motor recycling machine.

Working Process of Mini BSC Electric Motor Wrecker Machine

Turn on the air circuit breaker, motor starts to work;
Rotate the black button and adjust the pressure to a suitable level(clockwise for increasing and counterclockwise for reducing pressure);
Press the cutting hydraulic rod down and rotate the scrap motor stator, allowing the blade to fully cut one end of the copper winding of the scrap motor stator.
Press pulling hydraulic rod down to adjust the opening range of the claws, then reset and finish drawing copper.

Advantages of Mini BSC Scrap Motor Wrecker Machine

Economic Benefits

Equipped with hydraulic pump, it is of low noise and improves the working efficiency to cut and pull so as to bring great profit for customers;

Durable structure

High quality alloy steel and iron materials make the machine reliable and stable. Owing to testing before shipping and driven by hydraulic system, Mini BSC motor wrecker device can make sure a firm and long-term use.

wide application

Mini BSC is mini in size and only occupy small spaces, you can operate machine with single phase electricity or choose 3phase.

easy to operate

Our Mini BSC electric motor wrecker is designed for easy operation — even if you're new to motor recycling. It has a simple two-handle control system that makes the machine intuitive and user-friendly for beginners.

Possible problems and solutions

As is mentioned, when the cylinder cannot work smoothly or does not work, please check if 4/5 standard 46# hydraulic oil has been added;

The copper gripper head may fall off naturally after working for a long time. You need to remove 6 screws from its connection between the end of barrel and oil cylinder, then screw to the deepest part of oil cylinder push rod, meanwhile tighten the lock thread. Lastly just connect the barrel with oil cylinder well.
If using only one function for a long time, you should also turn on the non-used function switches to startup and reset them to ensure normal functions every time you start machine, then you can operate its functions normally. Otherwise long time non-used functions may change and affect the operation of whole machine.

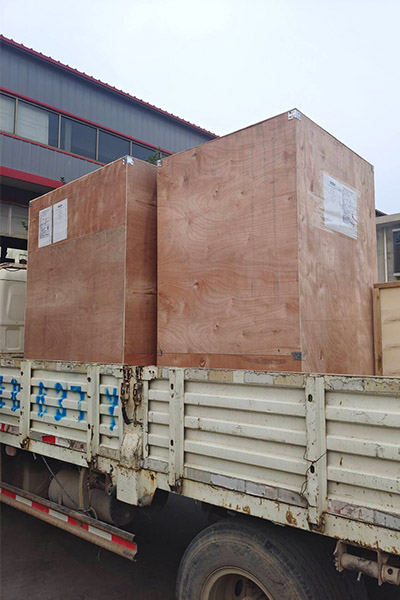

Packing of Mini BSC Electric Motor Wrecker Machine

Consultez votre expert en dépanneuse à moteur électrique 3T

Les solutions les plus complètes et les meilleures pour le recyclage de tous vos moteurs usagés avec une technologie de pointe et une efficacité supérieure.
