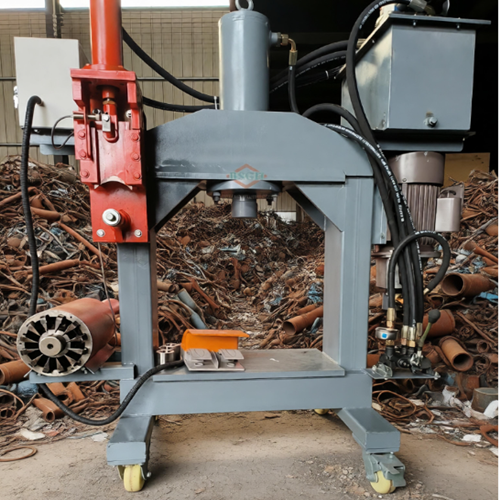

3T 3-in-1 Motor Dismantling Machine combines flexibility, durability, and high dismantling efficiency, its key advantages include:
1. Flexible 3-in-1 Configuration
Choose any 3 functions from hydraulic press, large cutter, small cutter, 8/12/16-claw puller, push-rod puller, or lifting clamp puller to create a customized dismantling solution based on your recycling needs.
2. Powerful & Stable Hydraulic System
The electric-powered hydraulic system delivers consistent pulling and cutting force, ensuring smooth operation for continuous motor dismantling.
3. Durable Components for Long Service Life
Equipped with H13 alloy steel cutting blades and industrial-grade pullers, the machine provides excellent wear resistance and helps maximize copper recovery from waste motors.
4. Trusted by Global Scrap Recyclers
With reliable performance and flexible configurations, the 3T motor dismantling machine has been widely adopted by scrap recycling professionals worldwide.
Attila had lots of standard scrap electric stators up to 200mm with outer shells, so we integrated a hydraulic press, a small cutter, and an 8-claw puller into a single compact unit for him. We recently tested his 3-function machine. As demonstrated in the video, the hydraulic press quickly cracks and removes the outer motor housing; the small cutter cleanly slices the copper windings at one end of the stator; and the 8-claw puller extracts the entire copper winding in a single pass.
Attila was highly impressed with the operating efficiency and noted: There is also a free rear gripper for me to pull copper windings out, really helpful. 3T’s motor dismantling machine is exactly what I’m looking for—even better than expected!”

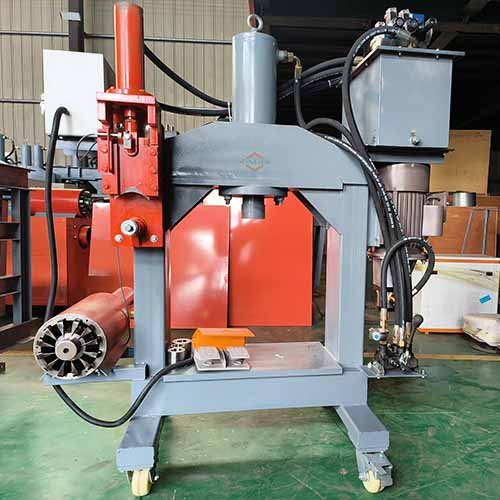

Our 3-in-1 Motor Dismantling Machine is designed to cut scrap motor stators and efficiently remove their copper windings. Its modular design lets you combine any 3 functions in one compact machine to match your motor sizes, stator structures, and daily recycling needs.
Available options include a motor shell press, large or small cutter, 8-jaw, 12-jaw, or 16-jaw puller, push-rod puller, and lifting-clamp puller. This flexible configuration allows you to process a wider range of scrap motors without investing in several separate machines.
Compact, versatile, and affordable, 3T’s 3-in-1 multifunction motor dismantling machine is a cost-effective choice for start-ups, independent recyclers, and small scrap yards looking to recover motors with a limited budget.
You may wonder whether a multifunctional 3-in-1 machine can perform as well as a single-function motor dismantler. The answer is yes. Each function delivers reliable cutting or pulling power, while the flexible design lets you combine three functions in one compact machine. Below are three popular configurations designed for different motor dismantling needs.
| Model | Big Cutter + Small Cutter + 8-Jaw Puller in 1 Motor Dismantling Machine | Push-Out Rod + Cutter + Lifting Gripper Motor Dismantling Machine | Press + 8-Jaw puller + Small Cutter Motor Dismantling Machine |
| Power | 4KW | 5.5 KW | 3KW |
| Weight | 630kg | 570kg | 300kg |
| Size | 1500*1000*1800mm | 1450*2000*1250mm | 1420*950*1700mm |
Beyond our standard 3-in-1 listed configurations, you can also freely select and combine any part below to build your own motor dismantling machine.
Press part can remove entire motor outer housing, you can also replace the head for blades freely.

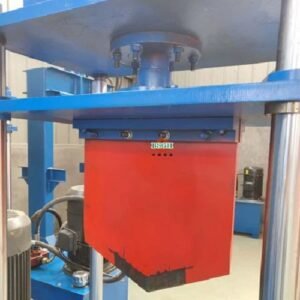

Big cutter can cut stator into two halves then easily for copper windings pulling, also part of BSM-50 motor dismantling machine.

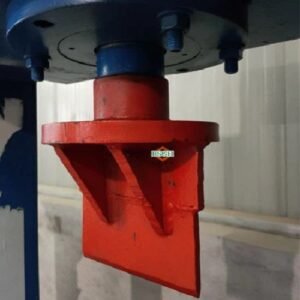

Small cutter can cut one end of scrap stator below 180mm, also part of BSM-40 motor dismantler.

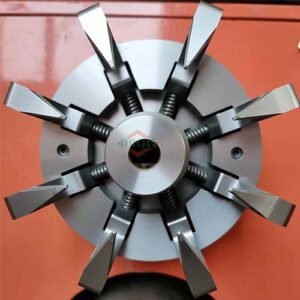

8-claw pulling part can separate copper windings from stator under 120mm, also part of BSM-40.

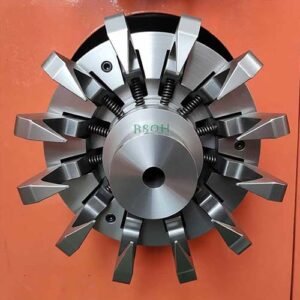

12-claw puller can separate copper windings from scrap common stators under 140mm.

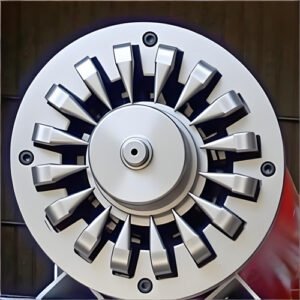

16-jaw clamp can remove copper windings from stator under 180mm, also part of BSM-40.
Push-out rod can extract copper coils from stator under 200mm, also part of mini BST motor dismantling machine and car generator recycling machine.
Hydraulic lifting plier can pull copper windings from stator under 500mm, also part of BSM-30 motor dismantling machine.
Designed for high-efficiency scrap processing, our 3-in-1 motor dismantling machine can turn your standard household motors up to 500mm into pure copper windings.
Your 3-in-1 motor dismantling machine has been securely wrapped in film and packed in a sturdy wooden crate, ensuring a better protection during sea transportation.
Our advanced 3-in-1 motor dismantling machine has been sold all over the world, earning the trust of recycling companies, repair shops, and scrap yards of all sizes.
Yes, our 3-in-1 motor dismantling machine can handle motor stator with maximum outer diameter up to 300mm, you can tell us your stator diameter, and we will give you a perfect solution.
Of course, we can customize any voltage for 3-in-1 motor dismantling machine including 480V.
Yes, you can, but we strongly recommend you to buy extra claws and blades from 3T, because we can offer original accessories that will achieve a perfect operation.
Yes, you also can process compressor stators, if you have lots of whole compressor motors, you’d better buy professional compressor recycling machine.
Yes, sure, you can add, we can custom for you.
