Juan runs a small household appliance motor recycling business in Spain. With a growing stock of scrap motors, he needed a machine to dismantle his motors more efficiently. After comparing several options, he chose our BS-T10 motor breaking machine.
Before shipment, we sent the factory test to give Juan a clear view of the complete motor stator cutting and copper extraction process.
First, the operator places the stator on rotating rollers and lowers control lever. As the stator rotates, round blade cuts through the copper windings at one end. Then the stator is moved to the pulling part, where a push-out rod removes copper windings from stator core.
Smooth cutting, stable extraction, and clean copper recovery!

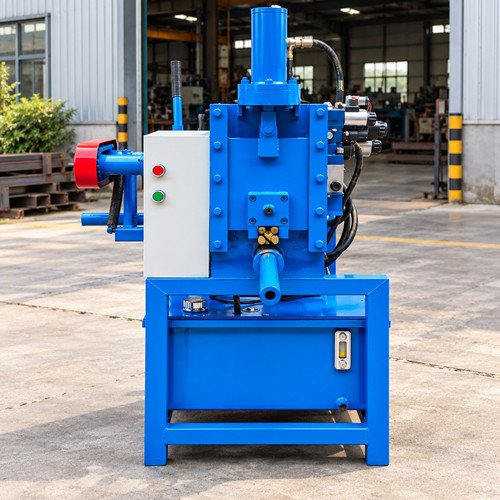

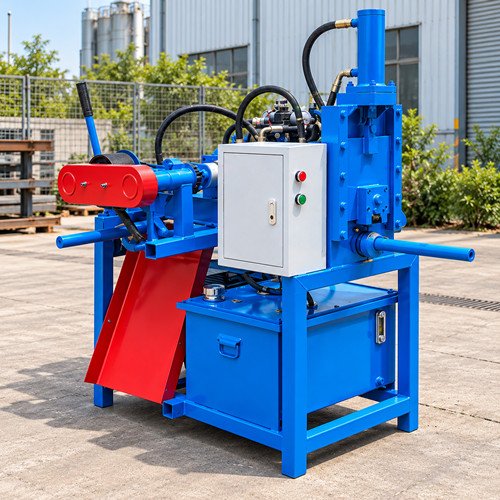

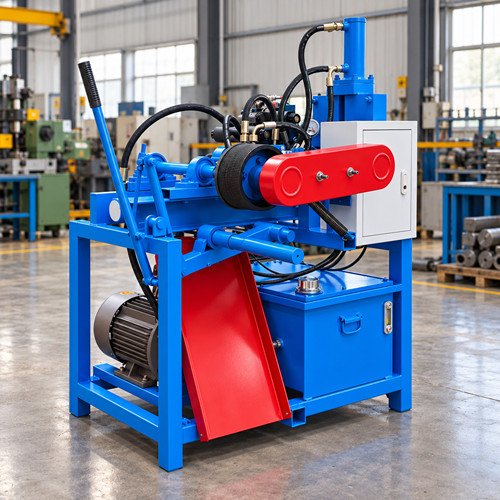

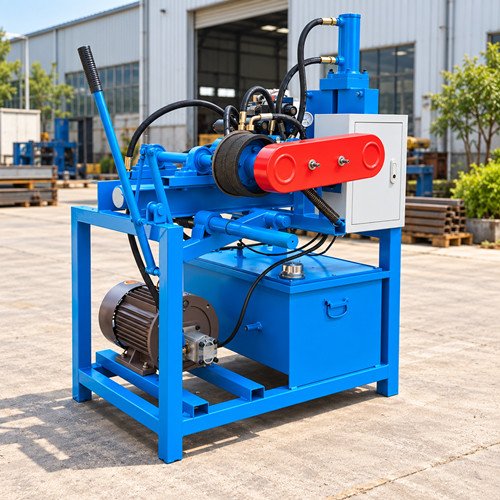

3T’s advanced BS-T10 motor breaking machine combines stator winding cutting and copper coil extraction in one system. It dismantles motor stators up to 300 mm in diameter from motors rated up to 30 kW, enabling efficient copper recovery.
The affordable price makes BS-T10 a cost-effective investment for scrap yards and motor recycling businesses. Built with durable round cutting blade and pulling rod, BS-T10 breaking motor machine offers reliable performance for long-term use.
Standard Motor Maximum Power
BS-T10 motor breaking machine runs on standard three-phase power, with customizable voltage and phase options to meet your facility’s power requirements.
| Parameter | Specification |
| Model | BS-T10 Motor Breaking Machine |
| Max. Stator Diameter | 300 mm |
| Motor Processing Range | Common scrap motors up to 50 kW |
| Motor Power | 5.5 kW |
| Power Supply | 380 V, Three-Phase/Customized |
| Hydraulic Oil Tank Capacity | 80 L |
| Overall Dimensions (L * W * H) | 1500 * 900 * 1450 mm |
| Net Weight | 320 kg |
Single-phase option 5kw is available at an additional cost. Confirm your voltage and phase requirements before ordering.

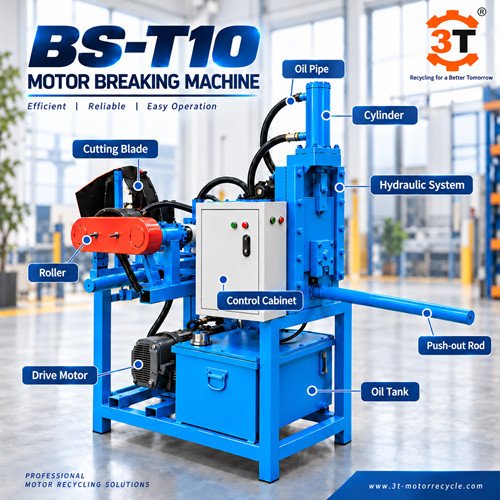

BS-T10 breaking electric motor machine integrates a stator windings cutting unit, copper pulling unit, hydraulic system, drive motor, and control cabinet into a compact 2 m³ design.
Customize the color, power supply, protective cover, logo and voltage. You can also choose the cutting or extraction section to suit your needs.
Thickened steel, a round blade, roller and push-out rod are built for a long service life, helping reduce routine maintenance and replacement costs.
Straightforward lever and foot-pedal controls make cutting and winding extraction easy to operate, one person can handle.
BS-T10 motor breaking machine can dismantle and extract copper windings from a wide range of common scrap electric motor stators, including:
• Household appliance motor stators
• Pump and fan motor stators
• General scrap electric motor stators
For too large or non-standard stators, send us the motor dimensions and photos so we can confirm compatibility before processing.
BS-T10 motor breaking machine with cutting and pulling functions is securely packed in a reinforced wooden crate, protecting from damage and moisture during shipping, ensuring machine arrive at your port in excellent condition.
Yes. BS-T10 motor breaking machine comes standard with 380V three-phase power. A customized 5kW single-phase version is also available at an additional cost.
No. Hydraulic oil is not included due to transportation restrictions. Before starting BS-T10 motor breaking machine, fill the hydraulic system with #46 anti-wear hydraulic oil as specified in the operating instructions.
BS-T10 is built for longer use. Just in case, you can prepare two oil pipes, cutting blades and a belt wheel.
